X156-50 Hensley Style Bolt-on Wrap Around Adapter
Product Description:
ADAPTER PRO-TUFF X156-50
HENSLEY STYLE BOLT-ON ADAPTER
-
Item #
SKU:02AD-X156-50
-
Price (ea.)
$24.36
- Brand
-
Mfg. Model #
X156-50
-
Ship Weight (lbs.)
4.1 lb
- Availability Available in stock

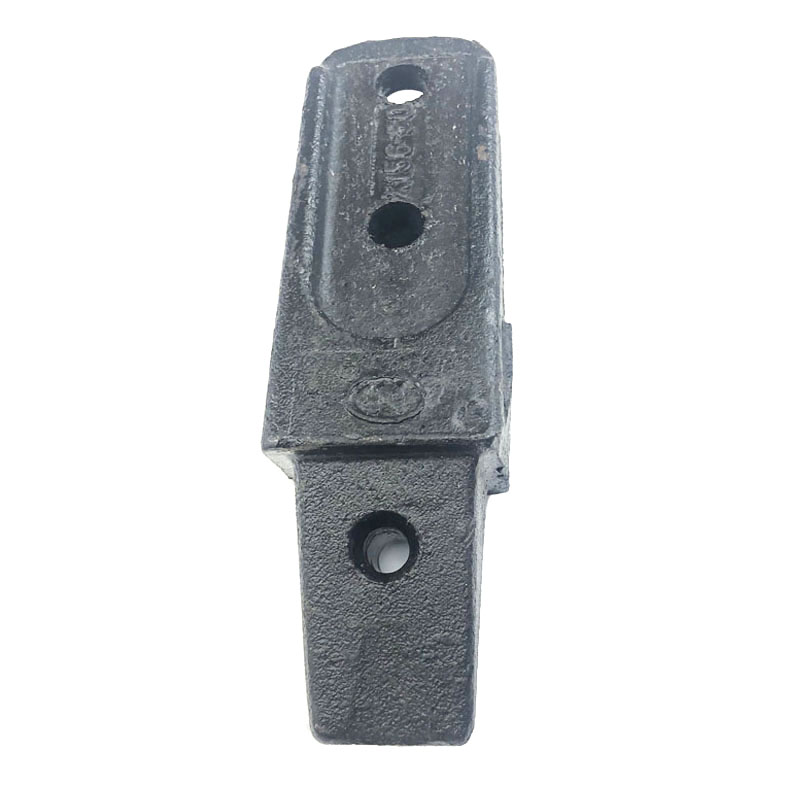

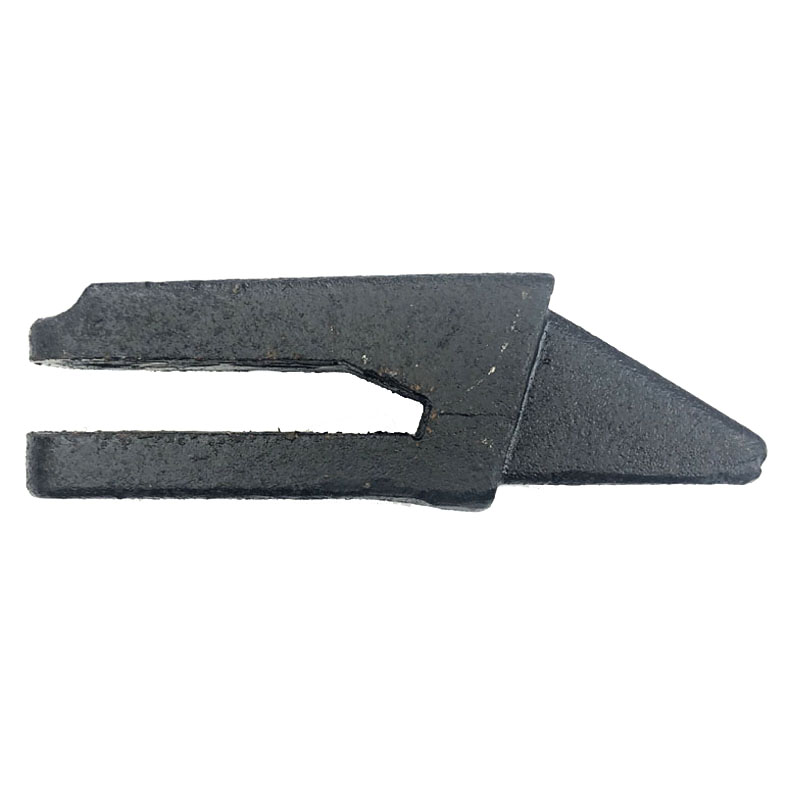

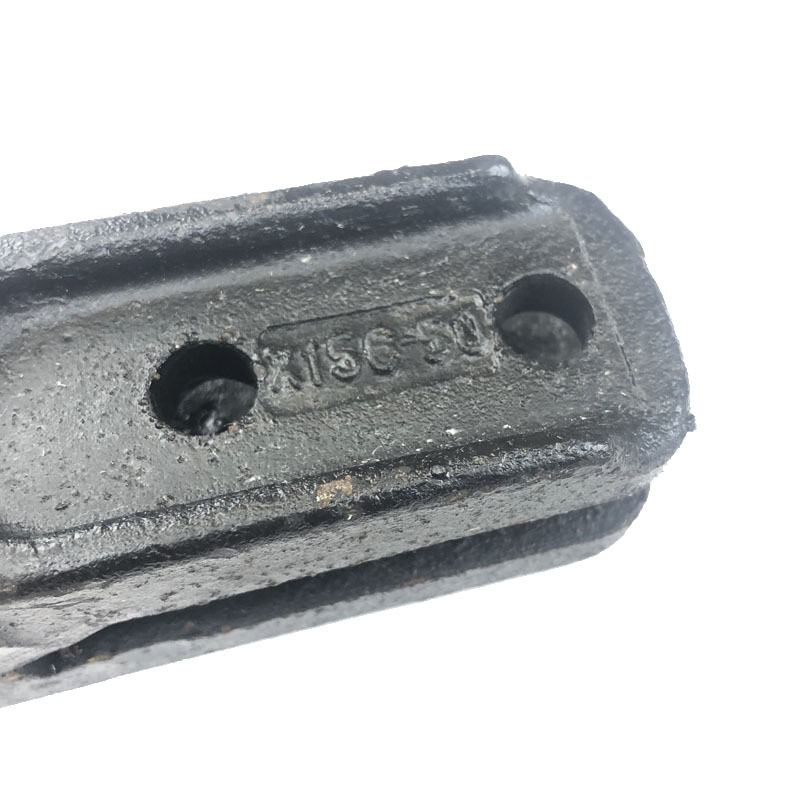

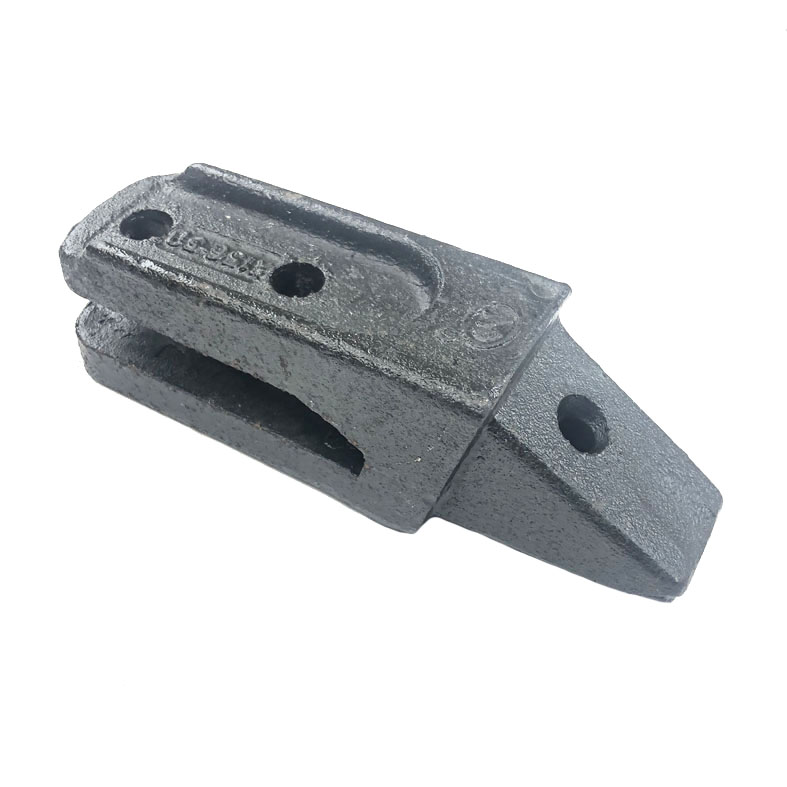

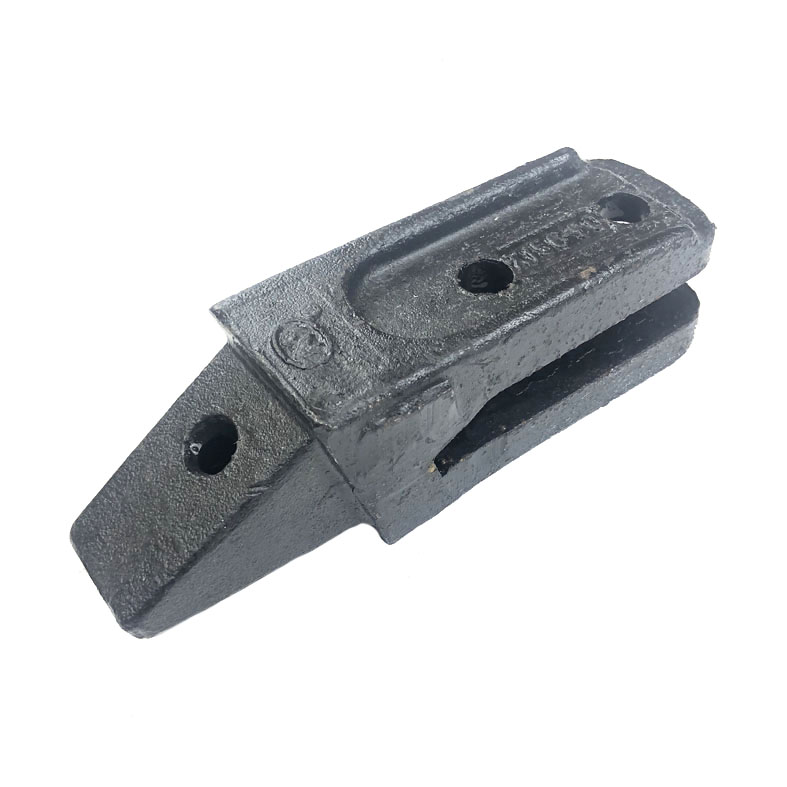

X156-50 Pro-Tuff Hensley Style Bolt-On Wrap Around Adapter
This X156-50 bolt-on adapter is ideal for use with all X156 Roll Pin Hensley Style Teeth. Adapter will accomodate 5/8 inch lip thickness. Requires 2 only 1/2x2 inch Grade 8 Hex Bolts and 2 only 1/2 inch Grade 8 nuts
Dimensions:
Overall Length: 7.00 inches
Overall Width: 2.10 inches
Overall Height: 2.10 inches
Overall Length: 7.00 inches
Overall Width: 2.10 inches
Overall Height: 2.10 inches
Bolt Hole Spacing: 1.75 inches (center hole to center hole)
Weight: 4.10 lbs.
For Lip Thickness: 5/8 inch
Alternate Part Numbers: X156-50, 6808770
DISCLAIMER: All manufacturers’ names, numbers, symbols, and descriptions are used for reference purposes only. It is not implied that any part listed is the product of or is endorsed by any of these manufacturers. NOTE: Some items may appear differently from the images on this website due to different manufacturing runs. Dimensions and weights are approximate and can vary by manufacturer.
Made in China
