5/8 inch Grade G100 ProCraft Eye Self Locking Hooks

Home » Lifting Chain Components » Self Locking Hooks » Grade 100 Eye Self Locking Hooks » 5/8 inch Grade G100 ProCraft Eye Self Locking Hooks

Product Description:

HOOK EYE S/LOCK 100 P620H 5/8"
PROCRAFT EYE SELF LOCKING HOOK

  • Item #
    SKU:
    71HSA-E1020PR
  • Price (ea.)
    $159.21
  • Brand
  • Mfg. Model #
    71HSA-E1020PR
  • Ship Weight (lbs.)
    13.8 lb
  • Availability Available in stock

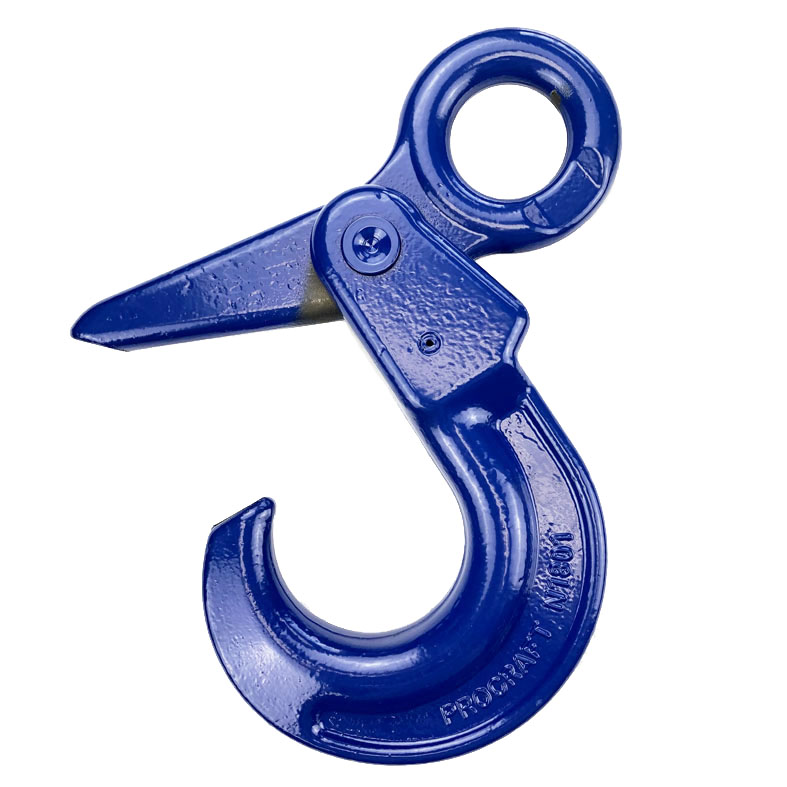

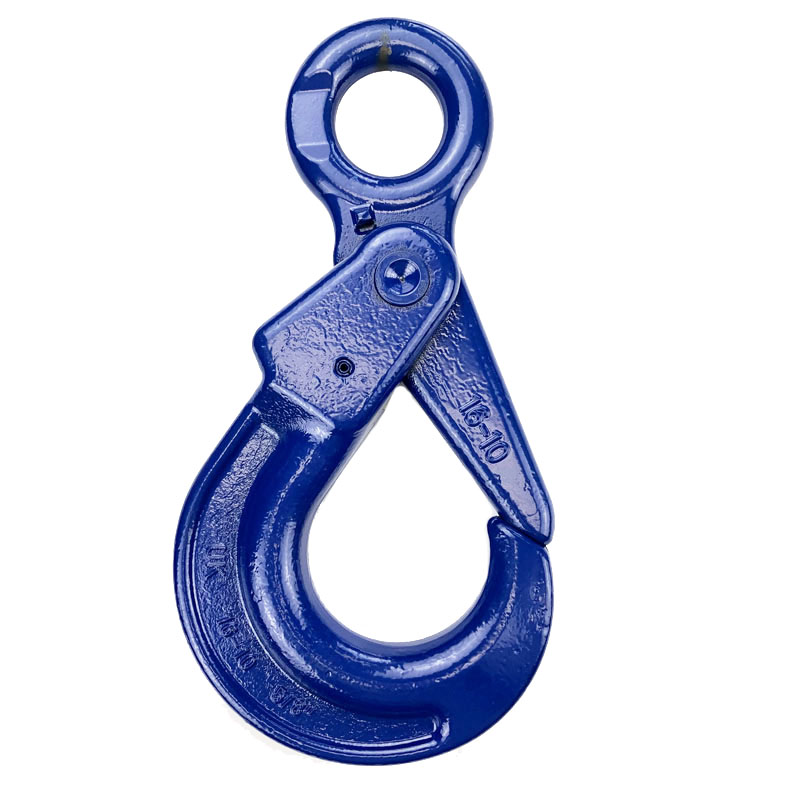

5/8 inch ProCraft Grade 100 Eye Type Self Locking Hooks

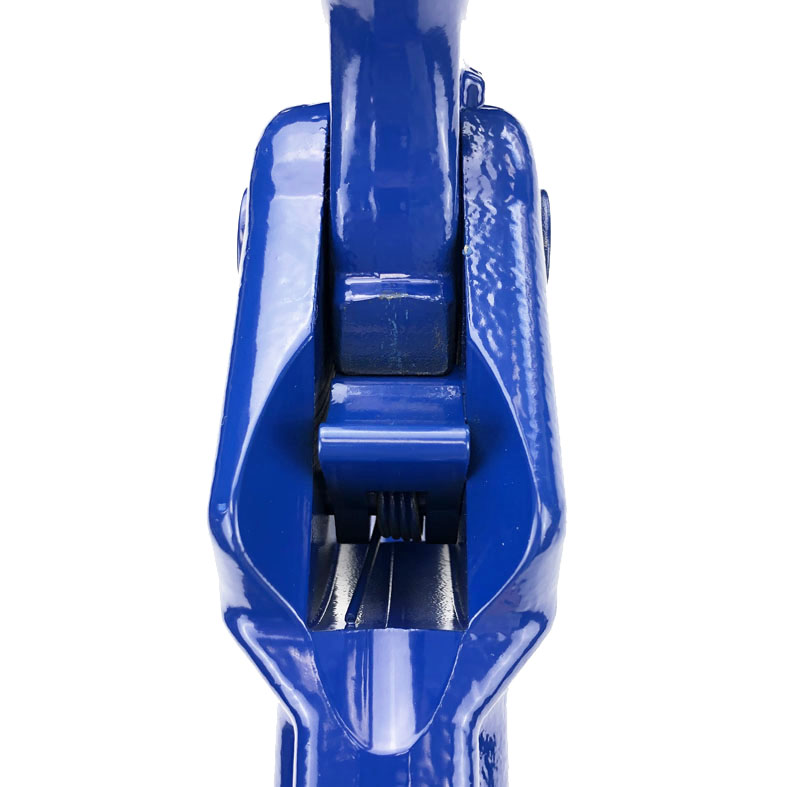

These self locking hooks are suitable for overhead lifting in a wide variety of applications. Commonly used with overhead lifting chain assemblies, but with the oversized eye it can be used for wire rope bridles, web slings bridles and synthetic rope assemblies. The trigger kit is recessed for increased safety, and will only release when unloaded. The hook will close when loaded and will remained closed until unloaded. Manufactured and proof load tested to EN 1677-4, and individually marked with manufacturer and batch code numbers that complies with or exceeds ASTM standards.

WLL 22,600 Pounds for chain with a 4:1 factor of safety

WLL 18,080 Pounds for wire rope and synthetic slings with a 5:1 factor of safety

Dimension sheet Click Here

Made in Taiwan

Trigger kit replacement part Click Here
