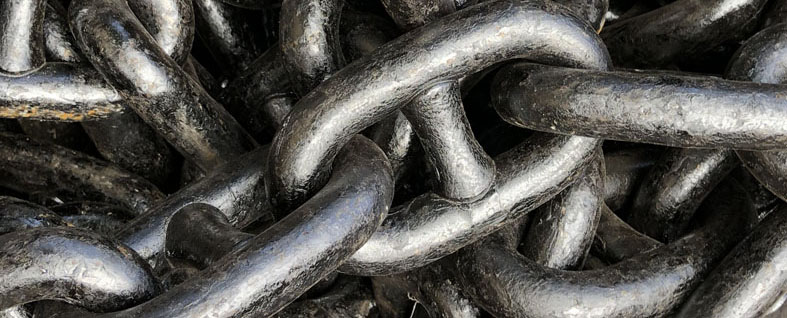

Stud Link Anchor Chain
Stud Link Anchor Chain
| Chain Size | Dimensions inches | Weight per | Grade 2 | Grade 3 ABS | |||||

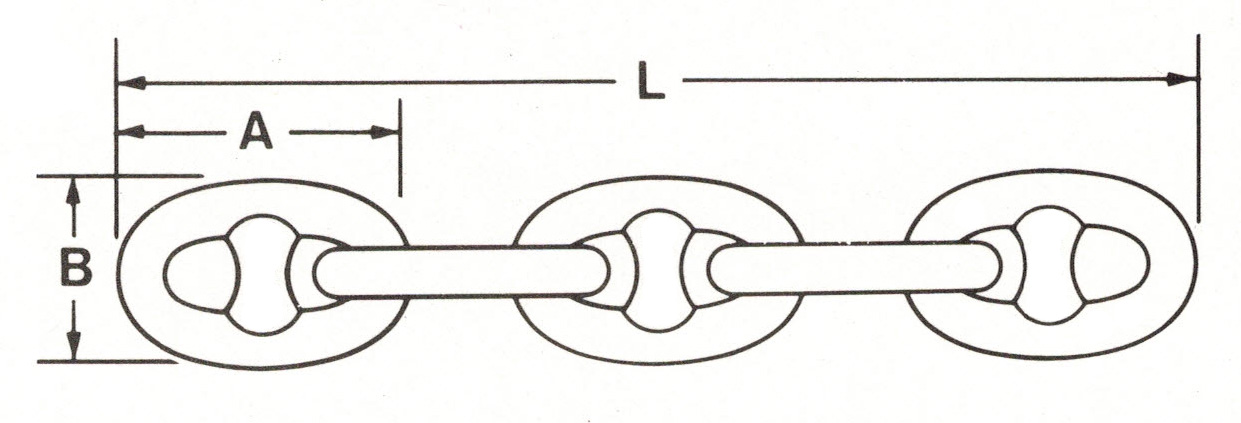

| Inches | mm | Link Length A | Link Width B | Length Over 5 Links L | 15 Fathom Shot (90 FT) | Proof Load | Breaking Strength | Proof Load | Breaking Strength |
| 5/8 | 16 | 3-3/4 | 2-1/4 | 13-3/4 | 365 lbs. | 23,745 lbs. | 33,220 lbs. | 33,220 lbs. | 47,465 lbs. |
| 3/4 | 19 | 4-1/2 | 2-5/8 | 16-1/2 | 480 lbs. | 34,000 lbs. | 47,600 lbs. | 47,600 lbs. | 68,000 lbs. |
| 7/8 | 22 | 5-1/4 | 3-1/8 | 19-1/4 | 660 lbs. | 46,000 lbs. | 64,400 lbs. | 64,400 lbs. | 91,800 lbs. |
| 1 | 25 | 6 | 3-9/16 | 22 | 860 lbs. | 59,700 lbs. | 83,600 lbs. | 83,600 lbs. | 119,500 lbs. |
| 1-1/8 | 29 | 6-3/4 | 4 | 24-3/4 | 1,080 lbs. | 75,000 lbs. | 105,000 lbs. | 105,000 lbs. | 150,000 lbs. |
| 1-1/4 | 32 | 7-1/2 | 4-1/2 | 27-1/2 | 1,350 lbs. | 92,200 lbs. | 129,000 lbs. | 129,000 lbs. | 184,000 lbs. |
| 1-5/16 | 33 | 7-7/8 | 4-3/4 | 28-7/8 | 1,490 lbs. | 101,500 lbs. | 142,000 lbs. | 142,000 lbs. | 203,000 lbs. |
| 1-3/8 | 34 | 8-1/4 | 4-15/16 | 30-1/4 | 1,630 lbs. | 111,000 lbs. | 155,000 lbs. | 155,000 lbs. | 222,000 lbs. |
| 1-1/2 | 38 | 9 | 5-3/8 | 33 | 1,940 lbs. | 131,000 lbs. | 183,500 lbs. | 183,500 lbs. | 262,000 lbs. |
| 1-9/16 | 40 | 9-3/8 | 5-5/8 | 34-3/8 | 2,090 lbs. | 142,000 lbs. | 198,500 lbs. | 198,500 lbs. | 284,000 lbs. |
| 1-5/8 | 42 | 9-3/4 | 5-7/8 | 35-3/4 | 2,240 lbs. | 153,000 lbs. | 214,000 lbs. | 214,000 lbs. | 306,000 lbs. |
| 1-3/4 | 44 | 10-1/2 | 6-5/16 | 38-1/2 | 2,590 lbs. | 176,000 lbs. | 247,000 lbs. | 247,000 lbs. | 352,000 lbs. |
| 2 | 51 | 12 | 7-3/16 | 44 | 3,360 lbs. | 227,000 lbs. | 318,000 lbs. | 318,000 lbs. | 454,000 lbs. |
| 2-1/4 | 58 | 13-1/2 | 8-1/8 | 49-1/2 | 4,250 lbs. | 284,000 lbs. | 396,000 lbs. | 396,000 lbs. | 570,000 lbs. |
Item #:08STD-20G2G90
Mfr. Model #:08STD-20G2G90
CHAIN STUD GRADE 2 GV 5/8" GALVANIZED STUD ...
See All:Marine Stud Link Chain
Available in stock
Ready to Ship
Our Price: $1,377.90
Item #:08STD-20G2GABS90
Mfr. Model #:08STD-20G2GABS90
CHAIN STUD GRADE 2 GV 5/8" ABS GALVANIZED S...
See All:Marine Stud Link Chain
Available in stock
Ready to Ship
Our Price: $1,458.90
Item #:08STD-24G2G90
Mfr. Model #:08STD-24G2G90
CHAIN STUD GRADE 2 GV 3/4" GALVANIZED STUD ...
See All:Marine Stud Link Chain
Available in stock
Ready to Ship
Our Price: $1,350.00
Item #:08STD-24G3GABS90
Mfr. Model #:08STD-24G3GABS90
CHAIN STUD GRADE 3 GV 3/4" ABS GALV ST...
See All:Marine Stud Link Chain
Available in stock
Ready to Ship
Our Price: $1,969.20
Item #:08STD-24G3SABS90
Mfr. Model #:08STD-24G3SABS90
CHAIN STUD GRADE 3 BRIGHT 3/4" ABS ...
See All:Marine Stud Link Chain
Available in stock
Ready to Ship
Our Price: $1,792.80
Item #:08STD-28G2G90
Mfr. Model #:08STD-28G2G90
CHAIN STUD GRADE 2 GV 7/8" GALVANIZED STUD ...
See All:Marine Stud Link Chain
Available in stock
Ready to Ship
Our Price: $2,539.80
Item #:08STD-28G2GABS90
Mfr. Model #:08STD-28G2GABS90
CHAIN STUD GRADE 2 GV 7/8" ABS GALVANIZED A...
See All:Marine Stud Link Chain
Available in stock
Ready to Ship
Our Price: $1,764.00
Item #:08STD-28G3GABS90
Mfr. Model #:08STD-28G3GABS90
CHAIN STUD GRADE 3 GV 7/8" ABS GALV ST...
See All:Marine Stud Link Chain
Available in stock
Ready to Ship
Our Price: $2,851.20
Item #:08STD-32G2G90
Mfr. Model #:08STD-32G2G90
CHAIN STUD GRADE 2 GV 1" GALVANIZED STUD LI...
See All:Marine Stud Link Chain
Available in stock
Ready to Ship
Our Price: $1,805.40
Item #:08STD-32G2GABS90
Mfr. Model #:08STD-32G2GABS90
CHAIN STUD GRADE 2 GV 1" ABS GALV STUD LINK...
See All:Marine Stud Link Chain
Available in stock
Ready to Ship
Our Price: $2,193.30
