12mm Rud VRM Starpoint Eye Nut
Product Description:
EYE NUT RUD VRM 12mm
STARPOINT 12mm RUD EYENUT
-
Item #
SKU:28RUD-VRM-M12
-
Price (ea.)
$129.88
- Brand
-
Mfg. Model #
7990312
-
Ship Weight (lbs.)
0.4 lb
- Availability Available in stock
12mm RUD VRM Starpoint Eye Nut
- Pivots 360° for an easy adjustment in load direction.
- Quick and easy installation with just one bolt connection, hand tightening with appropriate wrench is sufficient for a singular lift
- Clear marking of the minimum WLL.for all directions
- Working load limit 1,650 pounds (750kgs)
- 4:1 Safety factor.
- Full working load in all directions.
- Range of rotation 360°.
- Maximum operation temperature range WITHOUT reduction of WLL -40°–100°C
The WLL statement corresponds to the minimum WLL in all loading directions. Higher WLL possible when location and installation is optimised (compare WLL chart/product information).
Component according to the test criterias of BG/DGUV “GS-OA-15-04”.
NOTE: WLL of the VRM are only in effect when using a quality grade 10.9 threaded bolt.min.

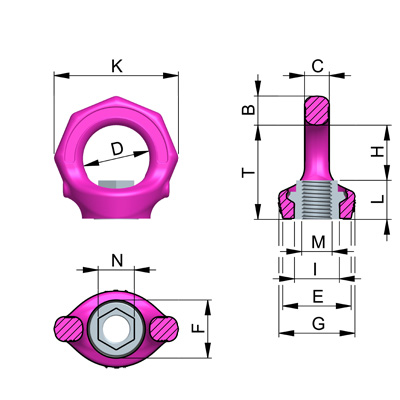

Dimension details Click Here
User instructions including WLL Chart Click Here
Made in Germany
