1-8UNCx1.36 inch Yoke Swivel Hoist Ring
Product Description:
RNG HST SWVL 8-204 1X1.36"
YOKE FORGED SWIVEL HOIST RING
-
Item #
SKU:28SHR-Y8204045
-
Price (ea.)
$291.88
- Brand
-
Mfg. Model #
8-204-045
-
Ship Weight (lbs.)
5 lb
- Availability Available in stock

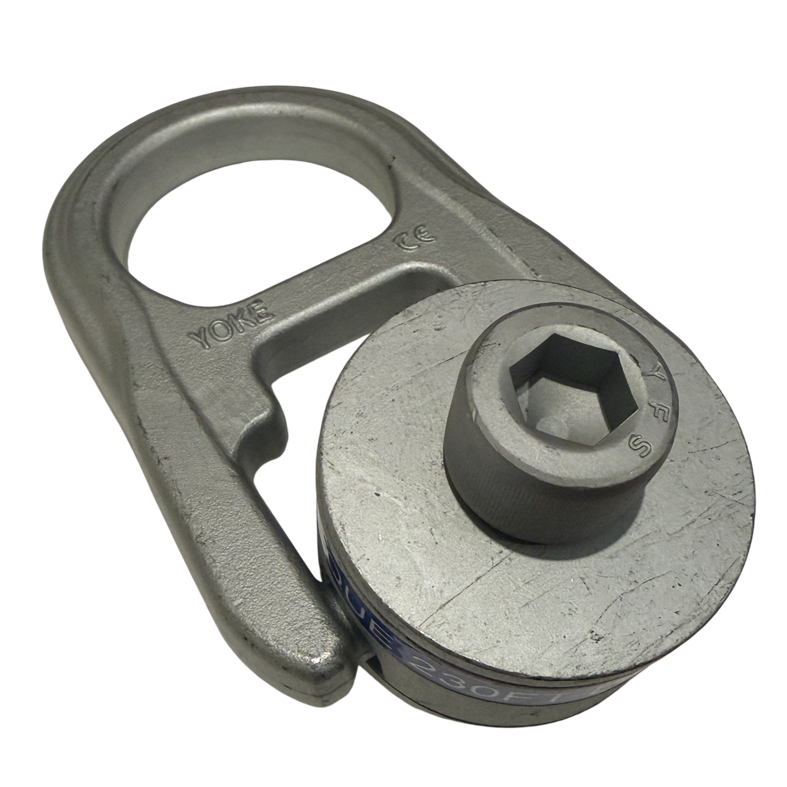

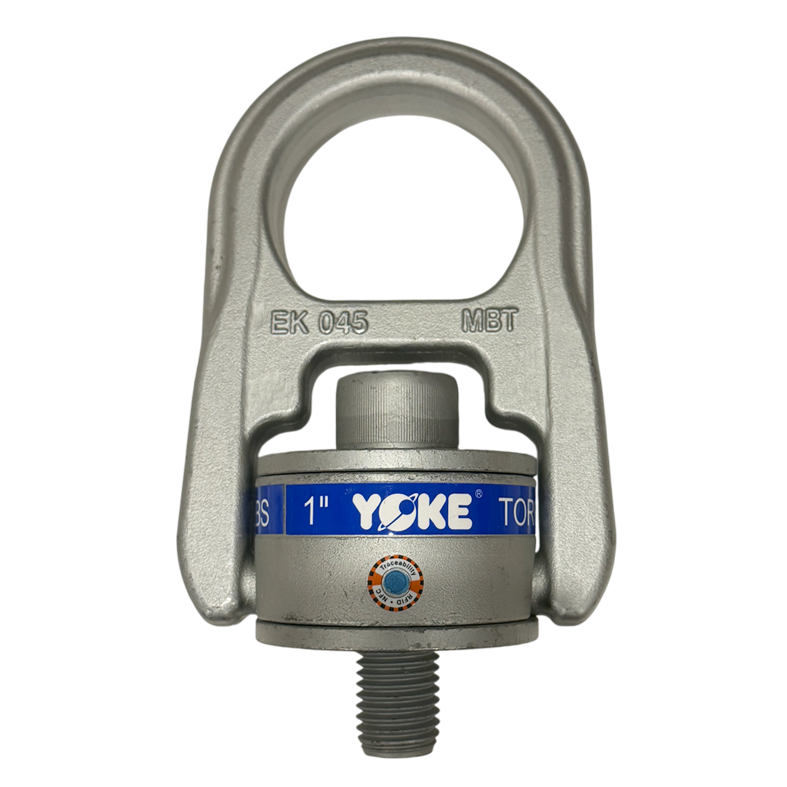

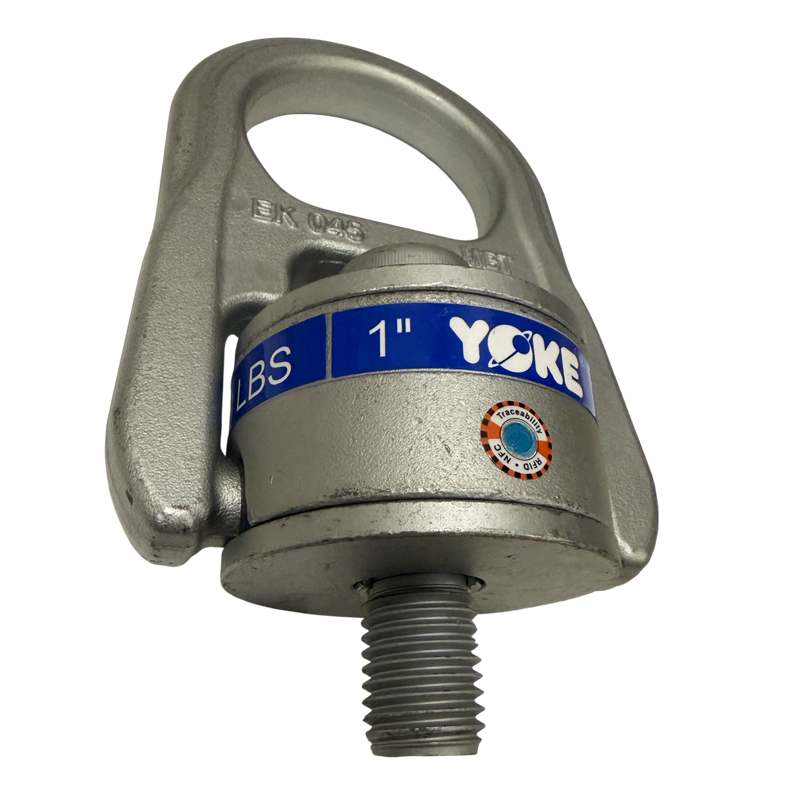

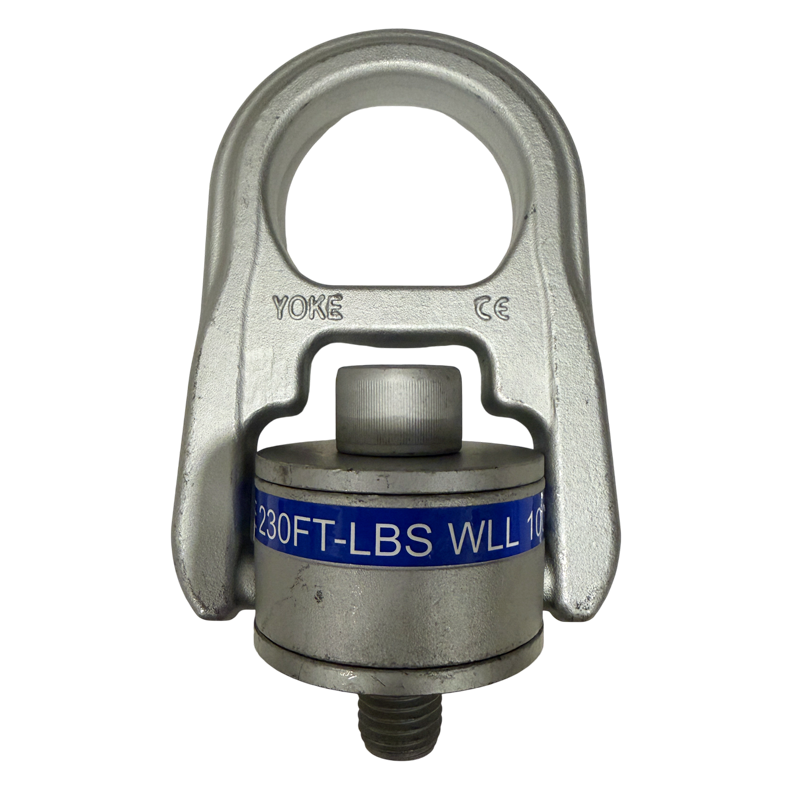

Yoke 1 inch UNC x 1.36 inch long 8-204-045 Swivel Hoist Ring
• Rotates through 360° and pivot 180°, rated at 100% at 90°angle.
• Manufactured from forged alloy steel, quenched and tempered.
• Manufactured and tested in accordance with EN1677-1.
• Load rated parts are 100% magnaflux crack detected.
• Individual forged parts and cap screw are traceable to Test Certification.
• Bolt are UNC thread (ASME/ ANSI B18.31M).
• Proof tested to 2.5 times the WLL.
• Fatigue rated to 1.5 times the WLL.
• All YOKE Lifting points meet or exceed all the requirements of ASME B30.26.
• Quick and simple assembly, just a tapped hole is required.
| 3D file download | Item NO. |
Working |
Thread TPI |

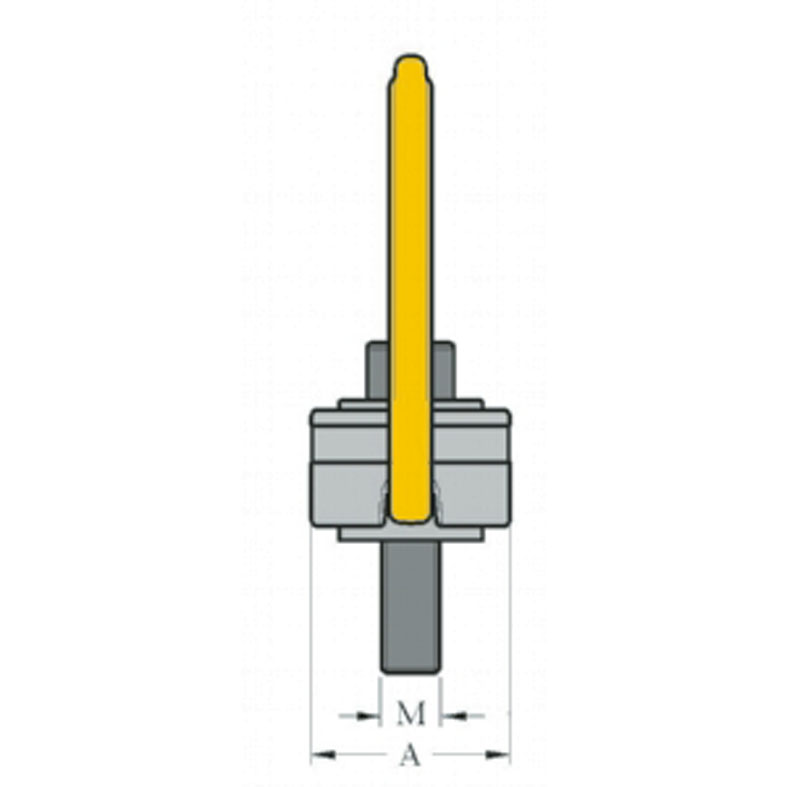

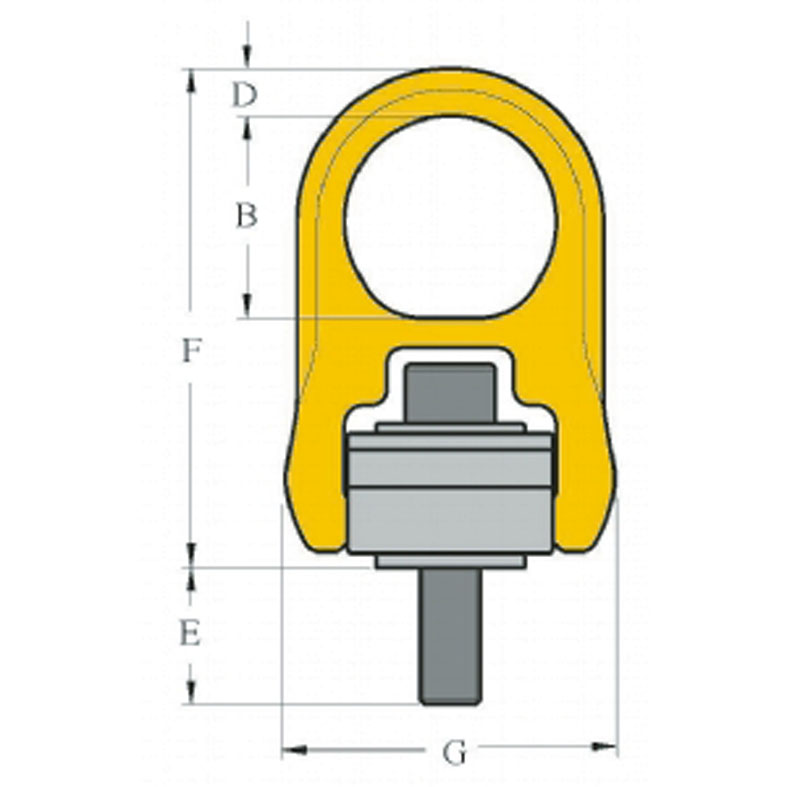

Dimensions(inch) |
Torque in ft. lbs. |
Weight lbs. |
|||||
|
A |
B |
D |
E |
F |
G |
||||||
 |
8-204-045 | 10000 | 1 - 8UNC | 3.35 | 2.87 | 0.87 | 1.36 | 8.03 | 5.28 | 230 | 9.5 |
★ Safety Factor 5:1
§ Long Bolts are designed for soft metal work piece.
Made in Taiwan
Lifting points meet or exceed all the requirements of ASME B30.26.
