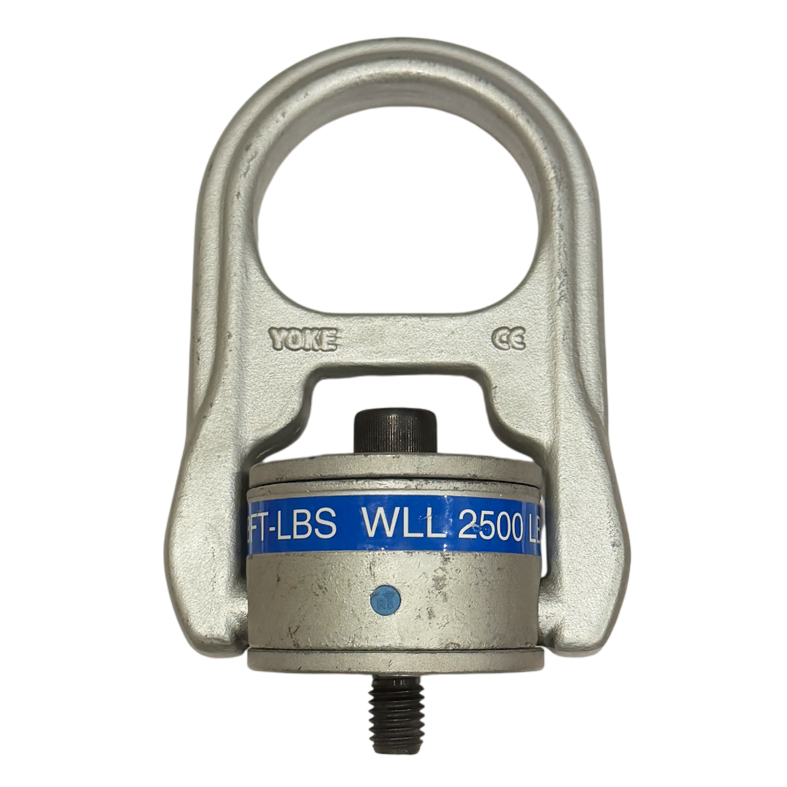

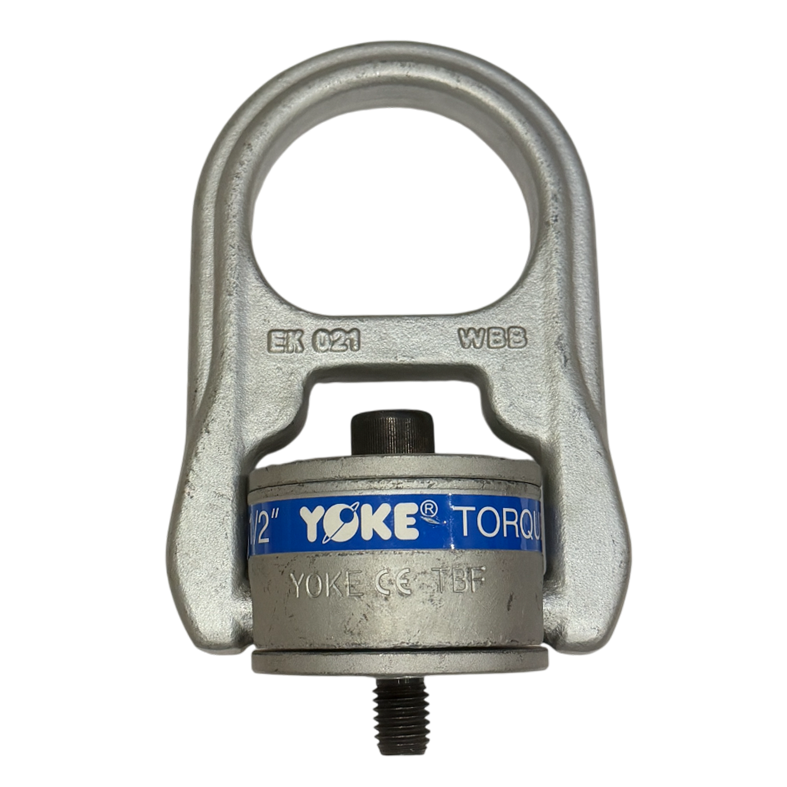

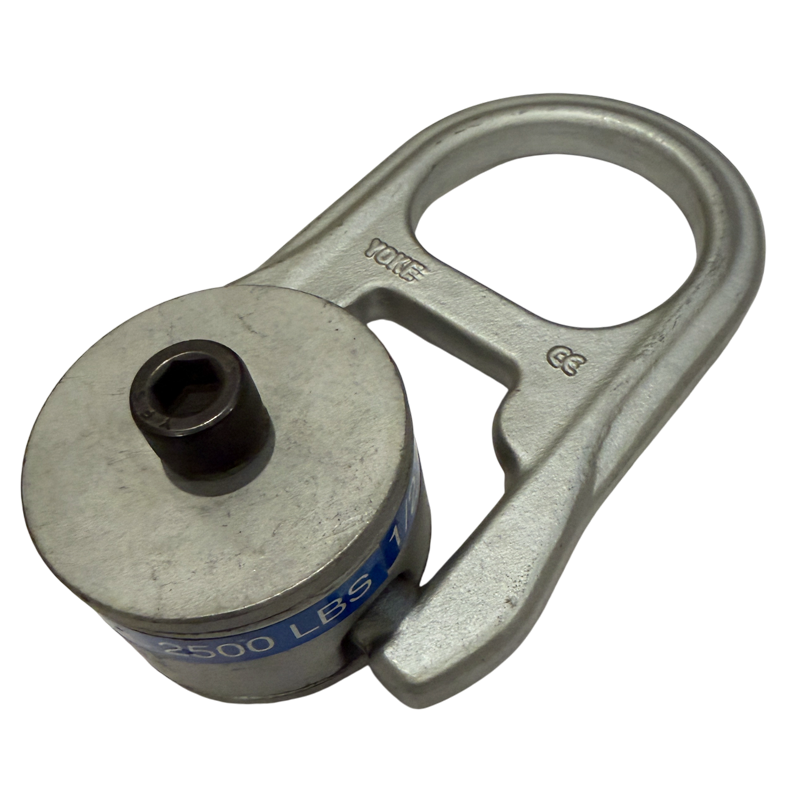

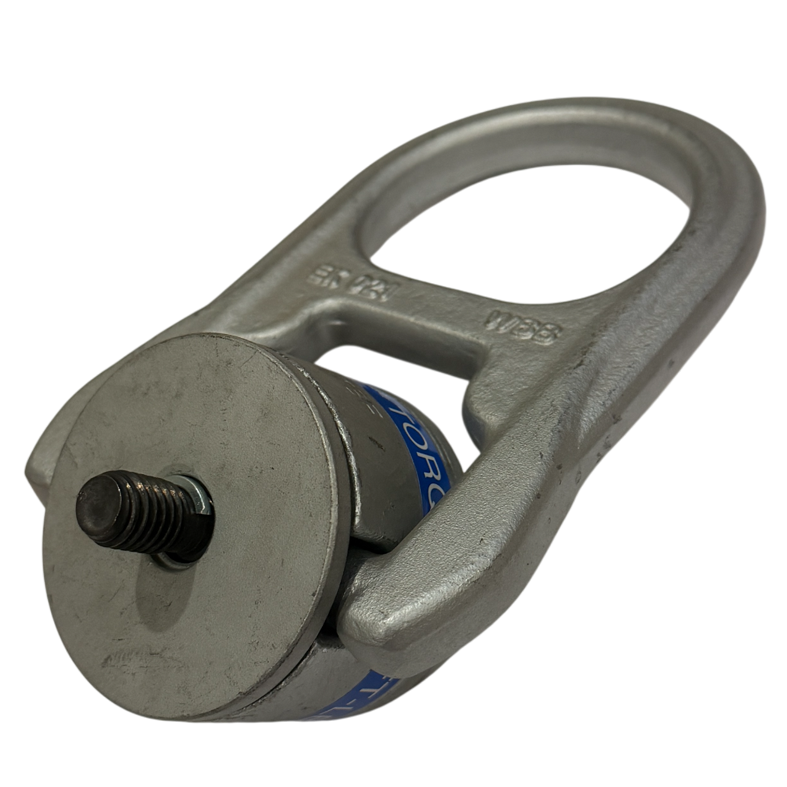

1/2-13UNCx0.75 inch Yoke Swivel Hoist Ring
Product Description:
RNG HST SWVL 8-204 1/2X0.75"
YOKE FORGED SWIVEL HOIST RING
-
Item #
SKU:28SHR-Y8204010
-
Price (ea.)
$167.93
- Brand
-
Mfg. Model #
8-204-010
-
Ship Weight (lbs.)
3.7 lb
- Availability Available in stock
Yoke 1/2 inch UNC x 0.75 inch long 8-204-010 Swivel Hoist Ring
• Rotates through 360° and pivot 180°, rated at 100% at 90°angle.
• Manufactured from forged alloy steel, quenched and tempered.
• Manufactured and tested in accordance with EN1677-1.
• Load rated parts are 100% magnaflux crack detected.
• Individual forged parts and cap screw are traceable to Test Certification.
• Bolt are UNC thread (ASME/ ANSI B18.31M).
• Proof tested to 2.5 times the WLL.
• Fatigue rated to 1.5 times the WLL.
• All YOKE Lifting points meet or exceed all the requirements of ASME B30.26.
• Quick and simple assembly, just a tapped hole is required.
| 3D file download | Item NO. |
Working |
Thread TPI |
Dimensions(inch) |
Torque in ft. lbs. |
Weight lbs. |
|||||
|
A |
B |
D |
E |
F |
G |
||||||
 |
8-204-010 | 2,500 | 1/2 - 16UNC | 2.56 | 2.32 | 0.59 | 0.75 | 6.26 | 4.13 | 28 | 3.7 |
★ Safety Factor 5:1
§ Long Bolts are designed for soft metal work piece.
Made in Taiwan
Lifting points meet or exceed all the requirements of ASME B30.26.
