3/4 inch Actek Pivot Lifting Plate 44410
Product Description:
-
Item #
SKU:28PLP-44410AK
-
Price (ea.)
$610.33
- Brand
-
Mfg. Model #
44410
-
Ship Weight (lbs.)
7.64 lb
- Availability Available in stock

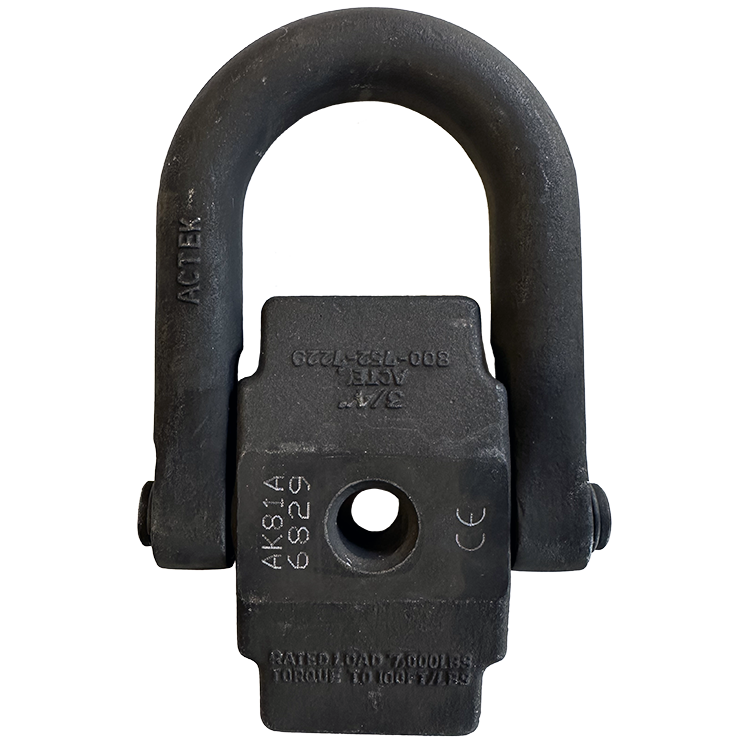

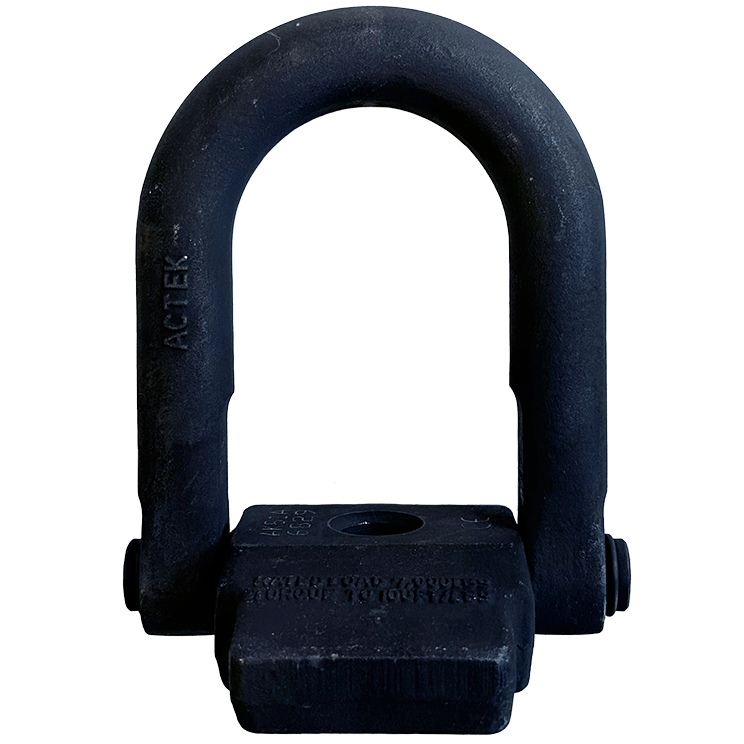

3/4 inch Actek Pivot Lifting Plate 44410
Fully forged pivot lifting plate, manufactured from alloy steel with a black oxide finish,
Rated Load: 7,000 lbs

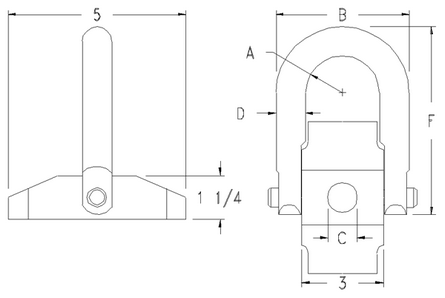

A: 1.40 in
B: 4-13/16 in
C: 3/4 in
D: 1 in
F: 6-1/2 in
Torque: 100 ft-lbs
Pivot Angle: 180°
Safety Factor: 5:1
Material: Alloy Steel
Finish: Black Oxide (Also available: Cadmium Plated, Electroless Nickel Plated, Zinc Plated)
Tested: 200% Proof-Load Tested upon request
Inspected: Magnetic Particle Inspected
Heat Treat: Certified Heat Treatment
Screws: High Tensile Alloy screws equivalent to Grade 8 must be used (not supplied)
Thread Type: UNC and Coil screws
Thread Engagement: Should be at least 1.5 times the screw diameter
Safety warnings Click Here
Made in USA
