3/4 inch 7 tonnes Yoke Alloy Wide Body Bolt Type Shackles
Product Description:
SHKL BODY WIDE YOKE 8-809-19 3/4"
7 TONNES YOKE WIDE BODY BOLT TYPE SHACKLE
-
Item #
SKU:50WBS-G0070Y
-
Price (ea.)
$67.79
- Brand
-
Mfg. Model #
8-809-19
-
Ship Weight (lbs.)
3.7 lb
- Availability Available in stock

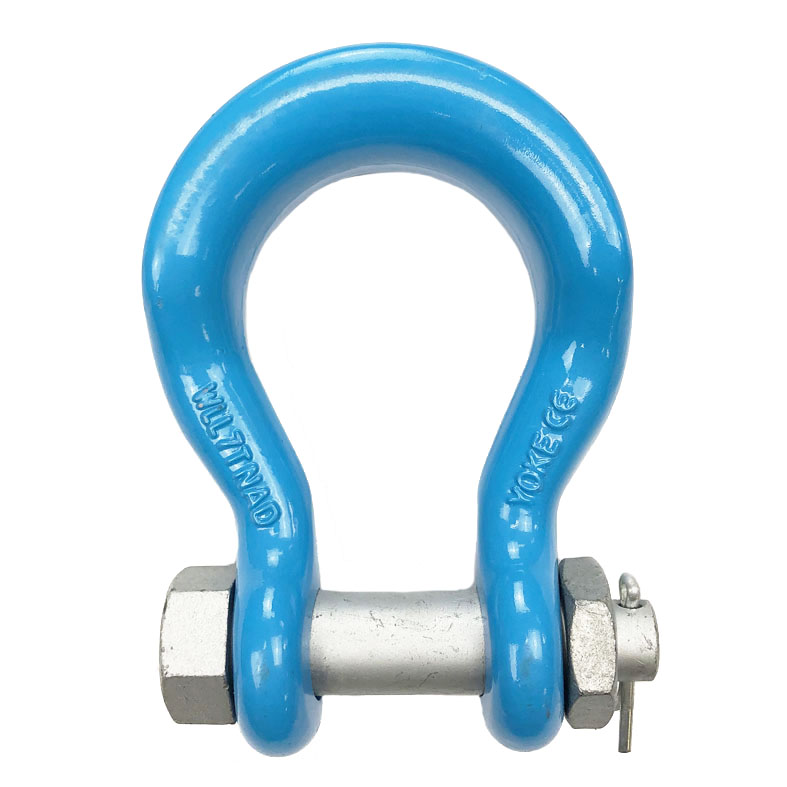

Yoke 3/4 inch 7 tonnes 8-809-19 Forged Alloy Wide Body Bolt Type Shackle
Description

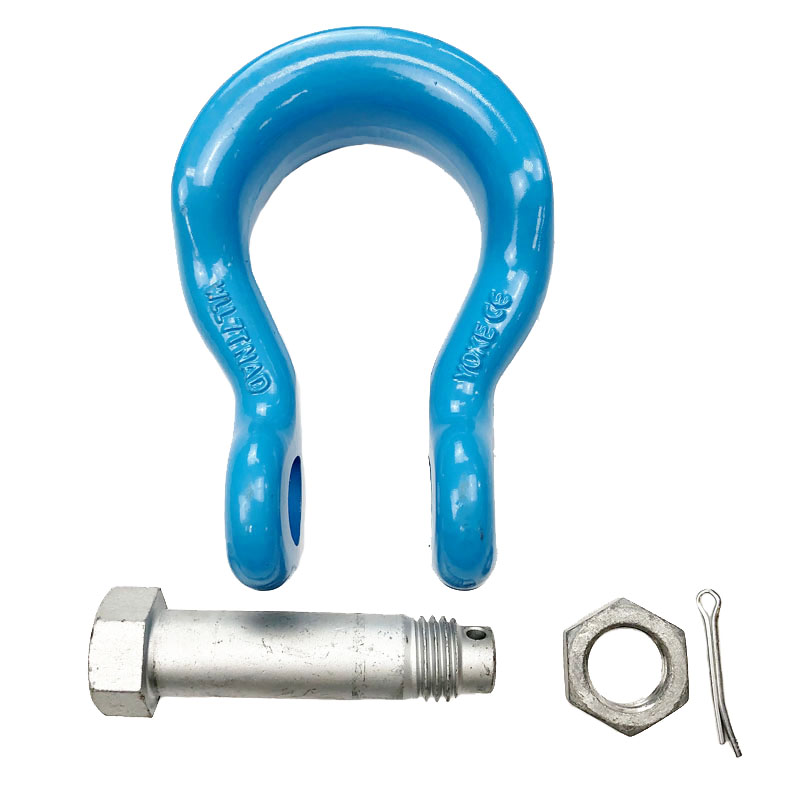

●Shackles are forged alloy steel with alloy pin.
●Size and the Working Load Limit permanently shown on each shackle.
●All shackles with Batch Code which links to Test Certificate and quality traceability.
●100% magnaflux crack detection during manufacturing.
●20,000 cycle fatigue rated to 1.5 times Working Load Limit.
●Shackles are forged alloy steel with alloy pin.
●Size and the Working Load Limit permanently shown on each shackle.
●All shackles with Batch Code which links to Test Certificate and quality traceability.
●100% magnaflux crack detection during manufacturing.
●20,000 cycle fatigue rated to 1.5 times Working Load Limit.
Dimensional Specifications:
| Item No. |
Nominal Size |
Working Load Limit | Dimensions (inch) | N.W. | |||||||||
| inch | tonnes* | A | B | C | D | E | G | H | K | R | W | lbs | |
|
8-809-19 |
3/4 | 7 | 3.58 | 1.61 | 0.70 | 0.87 | 1.26 | 1.81 | 5.90 | 4.09 | 1.26 | 1.30 | 3.7 |
★ Minimum Ultimate Load is 5 times the Working Load Limit. Maximum Proof Load is 2 times the Working Load Limit.

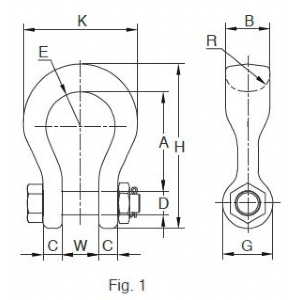

★ 8-809-19/-26 See Figure 1
Made in Taiwan
