Round Slings

Home >> Round Slings

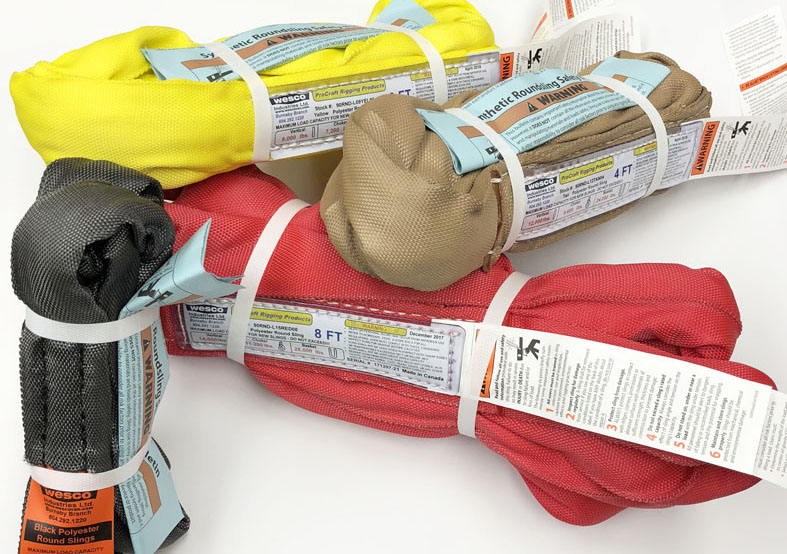

                                                 ProCraft Double Cover Polyester Round Slings

                                                  Made in Canada

  • ProCraft endless synthetic round slings are manufactured from a continuous loop of high tenacity polyester yarn covered by a polyester double jacket.
  • The double wall jacket is color coded and serves to protect the inner load bearing polyester yarns from damage and UV rays
  • Low stretch (about 3% at rated capacity)
  • Excellent contact and conforms to shape of your loads
  • Light weight and durable
  • Excellent for use in choke hitch applications as sling releases easily after use
  • Tagged with colour label sandwiched between thick clear plastic for longer service life



Working Load Limit of New Sling Effective Length (Reach) when sling is pulled flat bearing point to bearing point

Colour

(Sling Size)

Vertical  Choker Basket 2 FT 3 FT 4 FT 5 FT 6 FT 8 FT 10 FT 12 FT 14 FT 16 FT 18 FT 20 FT

Purple

(#1)

3,000 lbs. 2,400 lbs. 6,000 lbs.

$17.61

$18.96 $20.32 $22.90 $24.25 $26.96 $30.28 $32.98 $36.30 $39.01 $42.33 $45.03

Green

(#2)

6,000 lbs. 4,800 lbs. 12,000 lbs. $19.05 $20.72 $22.38 $25.28 $26.95 $30.28 $34.23 $37.56 $41.51 $44.84 $48.79 $52.12

Black Studio

(#2)

6000 lbs. 4,800 lbs. 12,000 lbs. $18.91 $20.58 $22.26 $25.16 $26.83 $30.18 $34.14 $37.48 $41.44 $44.78 $48.74

$52.08

Yellow

(#3)

9,000 lbs. 7,200 lbs. 18,000 lbs. $20.53 $22.77 $25.02 $28.50 $30.75 $35.24 $40.35 $44.84 $49.95 $54.44 $59.55 $64.05

Tan

(#4)

12,000 lbs. 9,600 lbs. 24,000 lbs. N/A $25.20 $27.96 $31.95 $34.71 $40.23 $46.36 $51.88 $58.01 $63.53 $69.67 $75.18

Red

(#5)

14,000 lbs. 11,200 lbs. 28,000 lbs. N/A $27.02 $30.15 $34.50 $37.62 $43.87 $50.73 $56.98 $63.84 $70.09 $76.95 $83.19

Orange

(#6)

17,000 lbs. 13,600 lbs. 34,000 lbs. N/A N/A $32.55 $37.43 $41.07 $48.36 $56.27 $63.56 $71.46 $78.75 $86.65 $93.94

Blue

(#7)

23,000 lbs. 18,400 lbs. 46,000 lbs. N/A N/A $57.69 $67.99 $77.06 $95.20 $113.96 $132.09 $150.85 $168.99 $187.74 $205.88

Grey

(#9)

32,000 lbs. 25,600 lbs. 64,000 lbs. N/A N/A N/A N/A POR POR POR POR POR POR POR POR







                                                                        ! ! ! Do Not Exceed Working Load Limit ! ! !
