9/16-5/8 inch RopeBlock Galvanized Open Spelter Sockets

Home » Wire Rope Fittings » Wire Rope Sockets » Spelter Sockets » Open Spelter » 9/16-5/8 inch RopeBlock Galvanized Open Spelter Sockets

Product Description:

SKT OPN SPLT 199 GV 9/16-5/8"
ROPEBLOCK OPEN SPELTER SOCKET

  • Item #
    SKU:
    60OSP-G20RB
  • Price (ea.)
    $141.30
  • Brand
  • Mfg. Model #
    OSS 199 P
  • Ship Weight (lbs.)
    4 lb
  • Availability Available in stock

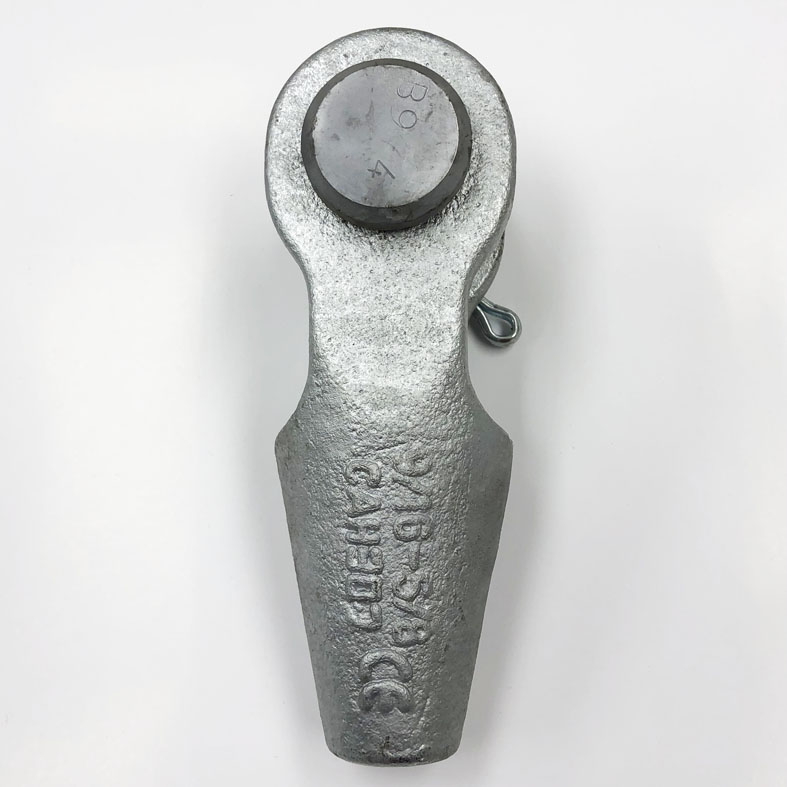

9/16-5/8 inch (14-16mm) RopeBlock Galvanized Open Spelter Sockets



Design
Spelter socket loading mechanisms characterize themselves as very complex and was researched intensively by Ropeblock using strain gauge testing and Finite Element research. A true and full understanding of the non-linear behavior is required to pursue the engineering optimum. This optimum was completed in geometry with our market first anti-rotation and negative force nose and low notch factor design for improved fatigue service. The full range of Ropeblock sockets are type approved by DNV GL and LRS.

Material
Our standard socket range is available in quenched and tempered cast steel with mechanical properties meeting today’s tough market requirements. All our sockets are suitable for usage in a sub-zero temperature environment. Materials meet or exceed an impact value of > 42 Joule / -20°C Charpy-V. The Ropeblock socket is marked with size, wire rope diameter and batch or serial number. All parts are fully traceable to their certificate by batch or serial number marked on each component.



Size:  9/16-5/8 inch (14-16mm)
Model Number: OSS 299 P
Minimum Breaking Load: 25 metric tons

Approximate Socket Resin Volume Required:  52 cc

For Dimensions:  Click Here



For Full RopeBlock Socket Catalogue:  Click Here(4.3 MB)

Made in The Netherlands

Wire Rope Socket-Lock Resin is a DNV and ABS Type Approved Product for use with these sockets.
