1/16 to 3/32 inch 7 x 7 SAC 316 Clear PVC Coated

Home » Wire Rope » 7x7 7x19 Aircraft Cable » Pvc Coated Stainless » 1/16 to 3/32 inch 7 x 7 SAC 316 Clear PVC Coated

Product Description:


Price per Foot

  • Item #
  • Price (ea.)
  • Brand
  • Mfg. Model #
  • Ship Weight (lbs.)
    0.011 lb
  • Availability Available in stock

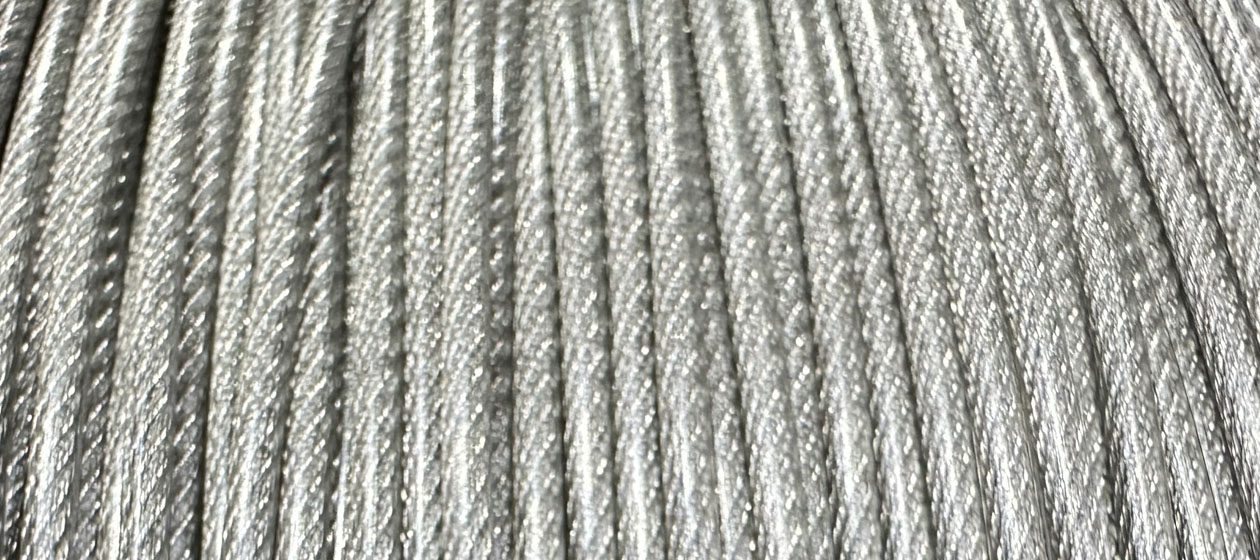

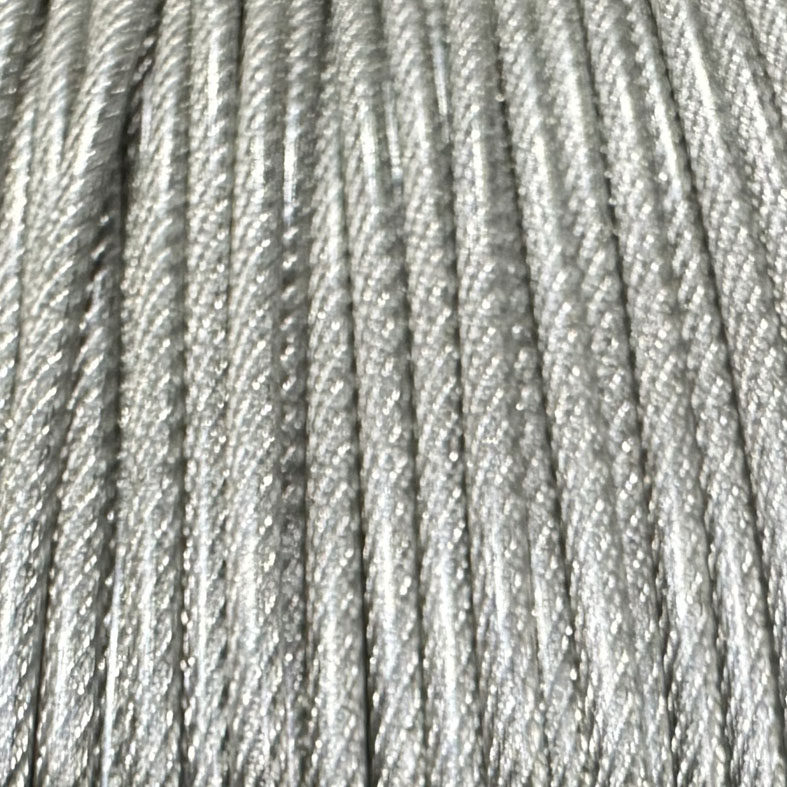

1/16 to 3/32 Inch 7X7 SSAC 316 Clear PVC Coated

A commercial grade aircraft cable which is flexible and is PVC coated. Stainless steel PVC Coated cables are excellent for outdoor applications with direct sunlight or wet environments. It is used for general multi purpose rigging such as stay cables, marine ropes, architectural cables and hanger ropes. When applying swaging sleeves or other swaged products, the PVC coating must be stripped and the wire rope is to be free of the coating.


Construction: 7x7 (6+1) WSC
Load Bearing Outer Wires: 42
Fill Factor 0.55
Tensile Grade: IPS
Minimum Breaking Strength: 480 lbs.
Use of swivel is Not Permitted.
Available cut to order from a bulk length.
For 7x7, 7x19 Aircraft Cable information: Click Here
For complete PowerStrand Wire Rope Catalogue: Click Here(4.3 MB)
! ! !Not to be used for Aircraft! ! !

Made in China
