3/16 Inch Crosby G-209 Load Rated Screw Pin Anchor Shackles

Home » Rigging Hardware » Anchor Shackles » Load Rated Screw Pin » 3/16 Inch Crosby G-209 Load Rated Screw Pin Anchor Shackles

Product Description:

SHKL ANC/SP LR GV G209 3/16"
1/3 TON CROSBY ANCHOR SHACKLE

  • Item #
    SKU:
    50LSP-G06CR
  • Price (ea.)
    $7.63
  • Brand
  • Mfg. Model #
    1018357
  • Ship Weight (lbs.)
    0.06 lb
  • Availability Available in stock

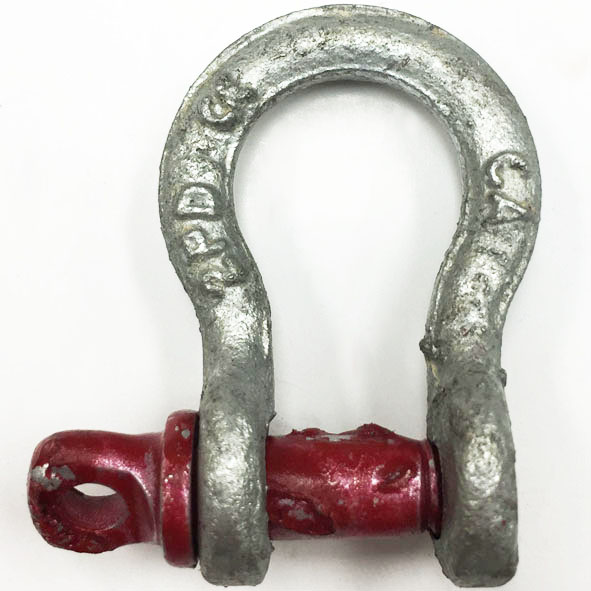

3/16 inch Crosby G-209 Galvanized Screw Pin Anchor Shackles

Crosby G-209 Screw pin anchor shackles meet the performance requirements of Federal Specification RR-C-271F Type IV A, Grade A, Class 2, except for those provisions required of the contractor.

• Size: 3/16 inch
• Capacity: 1/3 metric tons, grade 6.
• Forged - Quenched and Tempered, with alloy pins.
• Working Load Limit and grade “6 ” permanently shown on every shackle.
• Hot Dip galvanized
• Fatigue rated.
• Approved for use at -40 degrees C (-40 degrees F) to 204 degrees C (400 degrees F).
• Meets or exceeds all requirements of ASME B30.26.
• Look for the Red Pin® . . . the mark of genuine Crosby quality.

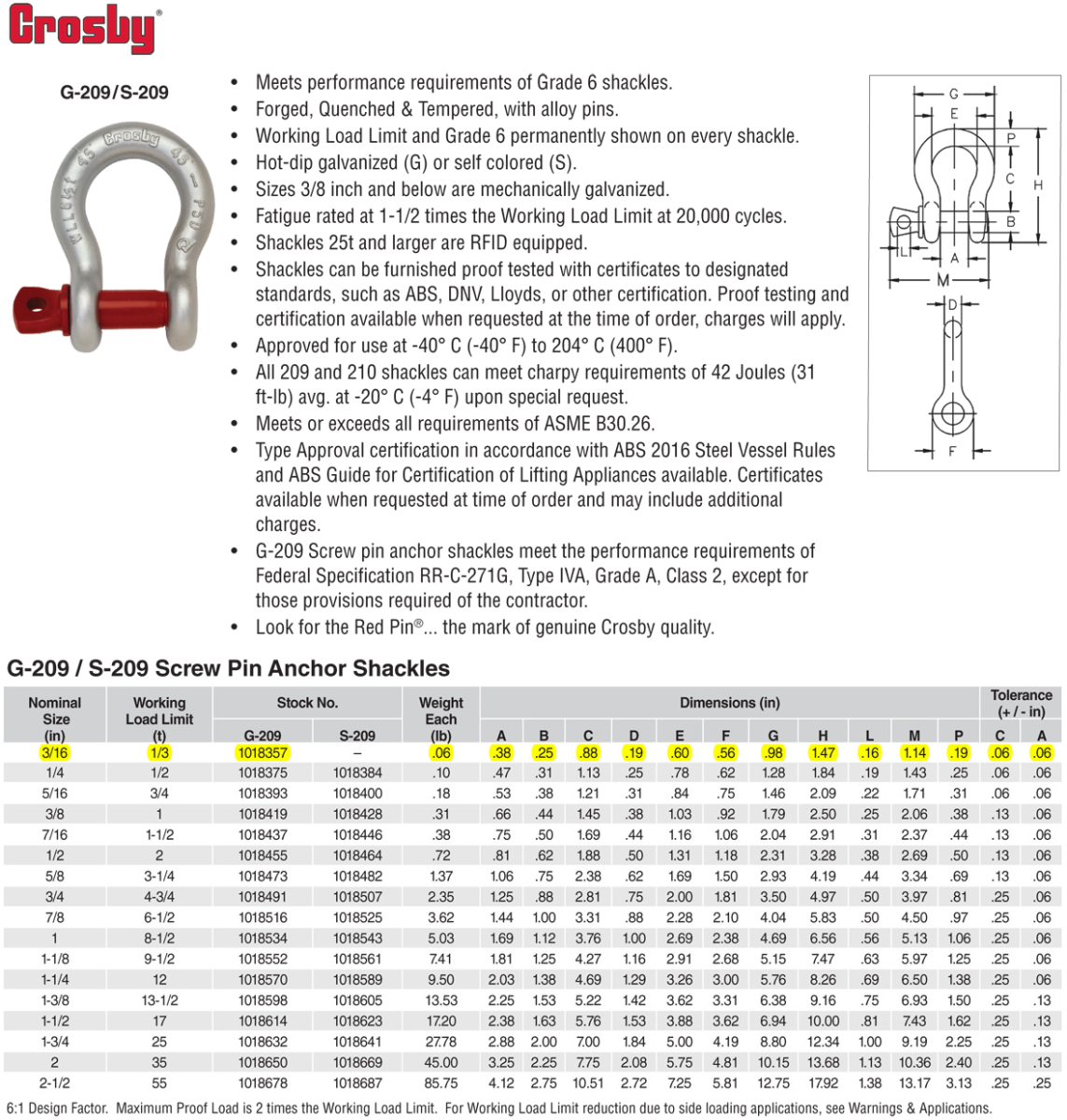

For Dimension Data:  Click Here

Crosby Rigging Tips Video courtesy of The Crosby Group:



Crosby G-209 Shackles meet following Crosby Performance Criteria:



Made in USA

Crosby Screw Pin Shackle Basics Rigging Tips courtesy of The Crosby Group:



Click on Picture to download Application Information:
