3/16 inch Crosby G-450 Wire Rope Clips

Home >> Wire Rope Fittings >> Wire Rope Clips >> Drop Forged Clips >> 3/16 inch Crosby G-450 Wire Rope Clips

Product Description:

CLIP W/R FG GV G450 3/16"
CROSBY G-450 WIRE ROPE CLIPS
  • Item #
    SKU:
    22FG-06CR
  • Price (ea.)
    5.08 CAD
  • Brand
  • Mfg. Model #
    1010033
  • Ship Weight (lbs.)
    0.1 lb
  • Availability Available in stock

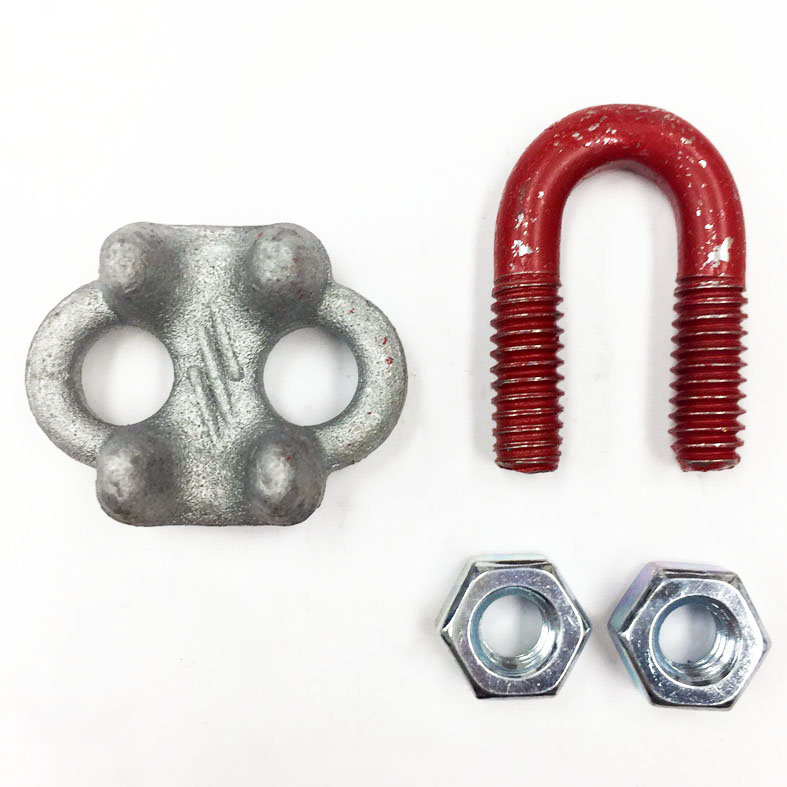

3/16 inch Crosby Drop Forged Wire Rope Clips


- Each base has a Product Identification Code (PIC) for material traceability, the name CROSBY or CG,and a size forged into it.
- Based on the catalog breaking strength of wire rope, Crosby wire rope clips have an efficiency rating of 80% for 1/8” - 7/8” sizes, and 90% for sizes 1” through 3-1/2”.
- Entire Clip is Galvanized to resist corrosive and rusting action.
- Sizes 1/8” through 2-1/2” and 3” have forged bases.
- All Clips are individually bagged or tagged with proper application instructions and warning information.
- Clip sizes up through 1-1/2” have rolled threads.
- Meets or exceeds all requirements of ASME B30.26 including identification, ductility, design factor, proof load and temperature requirements. Importantly, these wire rope clips meet other critical performance requirements including fatigue life, impact properties and material traceability, not addressed by ASME B30.26.
- Look for the Red-U-Bolt®, your assurance of Genuine Crosby Clips
- Minimum number of clips required for termination: 2 clips and nuts must be torqued to 7-1/2 ft/lbs. each
- Clips must be installed and torqued to proper specifications

For dimensions and other information: Click Here

Crosby Rigging Tips Video courtesy of The Crosby Group:

Made in USA
