1/4x1 inch Gray Shoulder Machinery Eye Bolts

Home » Rigging Hardware » Forged Eye Bolts » Machinery Eye Bolts » Imperial Eye Bolts » 1/4x1 inch Gray Shoulder Machinery Eye Bolts

Product Description:

EYE BOLT THRD BS08 1/4X1"
GRAY SHOULDER MACHINERY EYEBOLT
  • Item #
    SKU:
    28BTH-08SG
  • Price (ea.)
    $5.30
  • Brand
  • Mfg. Model #
    BS08
  • Ship Weight (lbs.)
    0.06 lb
  • Availability Available in stock

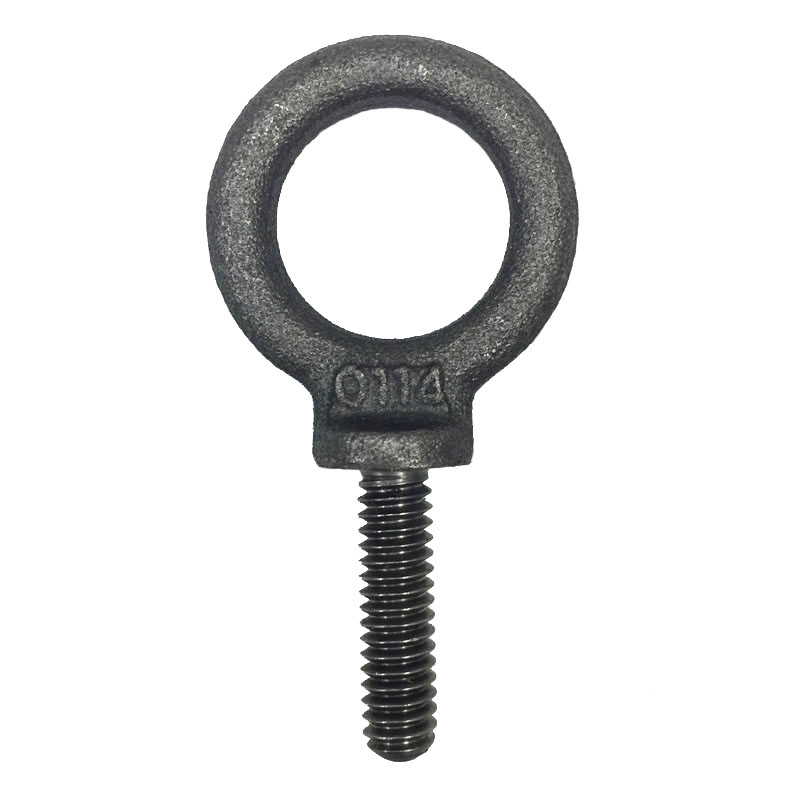

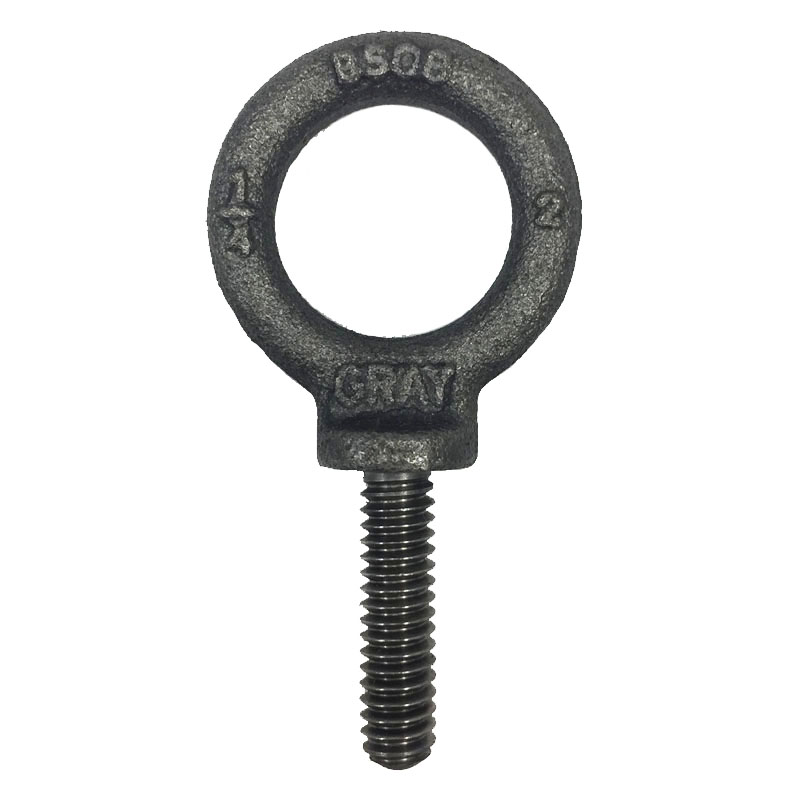

1/4 inch Gray Shoulder Pattern Machinery Eyebolts

Gray shoulder pattern eyebolts forged from bar quality fine grain C1030 / C1035 steel bar, and proof load tested in accordance with ASTM A489 and Federal Specifications ANSI B18.15. Shoulder style eyebolt 1/4" through 1" military style collar - MS51937 specifications. These eyebolts are undercut to ensure eyebolt will thread tight to shoulder.

Thread - 1/4 x 20 UNC 2A

Shank length under the shoulder - 1 inch

Working load limit - 650 pounds

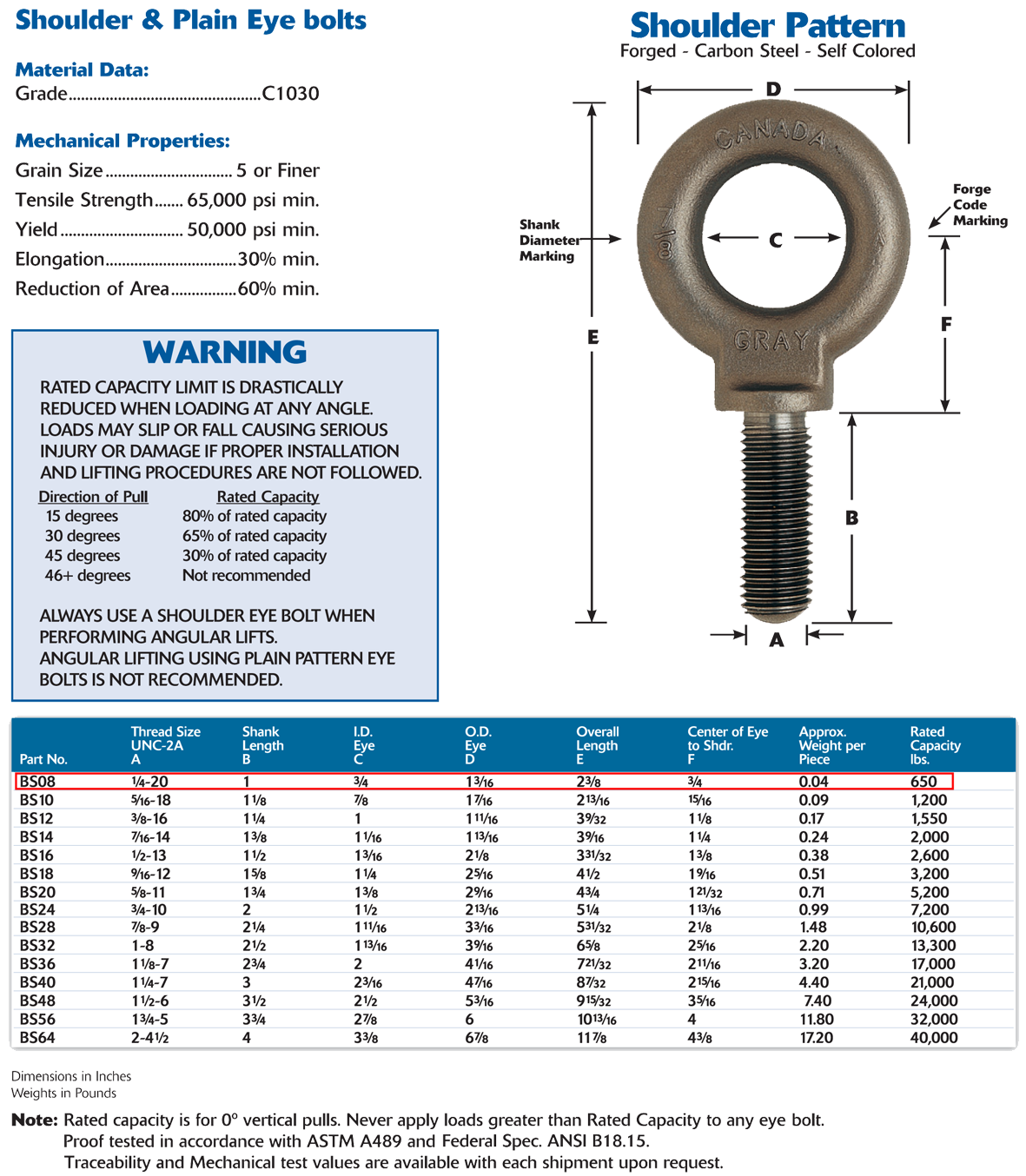

Specifications and dimensions: Click Here

Made in Taiwan
