7/16x1-3/8 Inch Gray Shoulder Machinery Eye Bolts
Product Description:
-
Item #
SKU:28BTH-14SG
-
Price (ea.)
$9.73
- Brand
-
Mfg. Model #
BS14
-
Ship Weight (lbs.)
0.24 lb
- Availability Available in stock

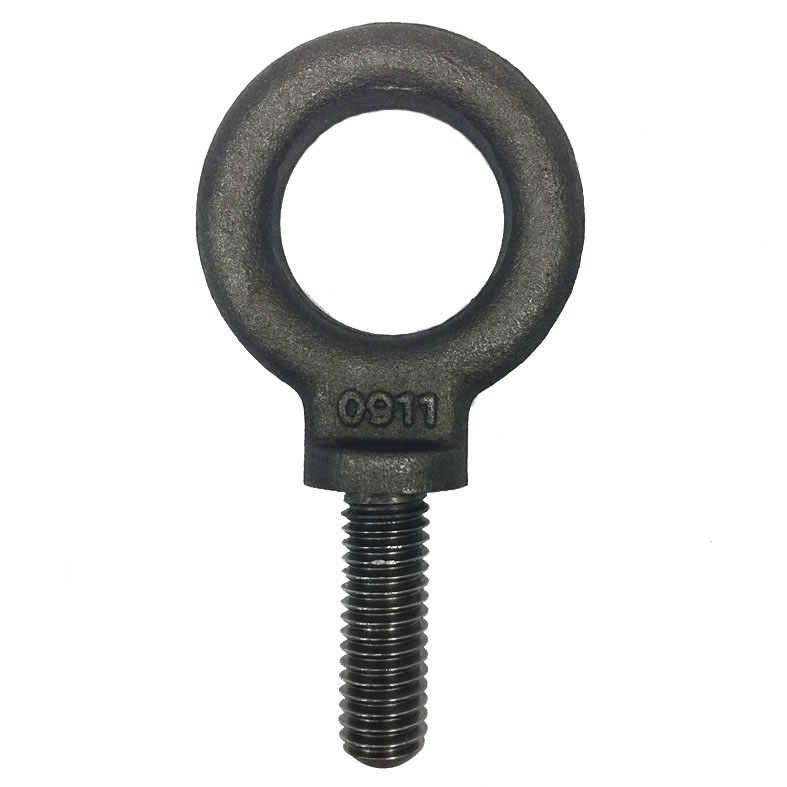

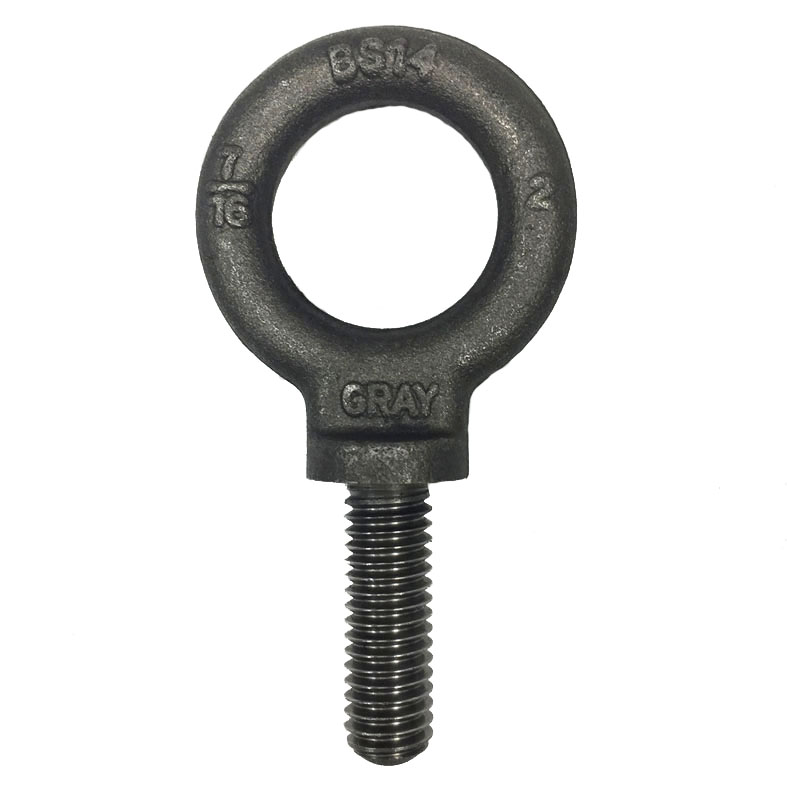

7/16 inch Gray Shoulder Pattern Machinery Eyebolts
Gray shoulder pattern eyebolts forged from bar quality fine grain C1030 / C1035 steel bar, and proof load tested in accordance with ASTM A489 and Federal Specifications ANSI B18.15. Shoulder style eyebolt 1/4" through 1" military style collar - MS51937 specifications. These eyebolts are undercut to ensure eyebolt will thread tight to shoulder.
Thread - 7/16 x 14 UNC 2A
Shank length under the shoulder - 1-3/8 inch
Working load limit - 2,000 pounds

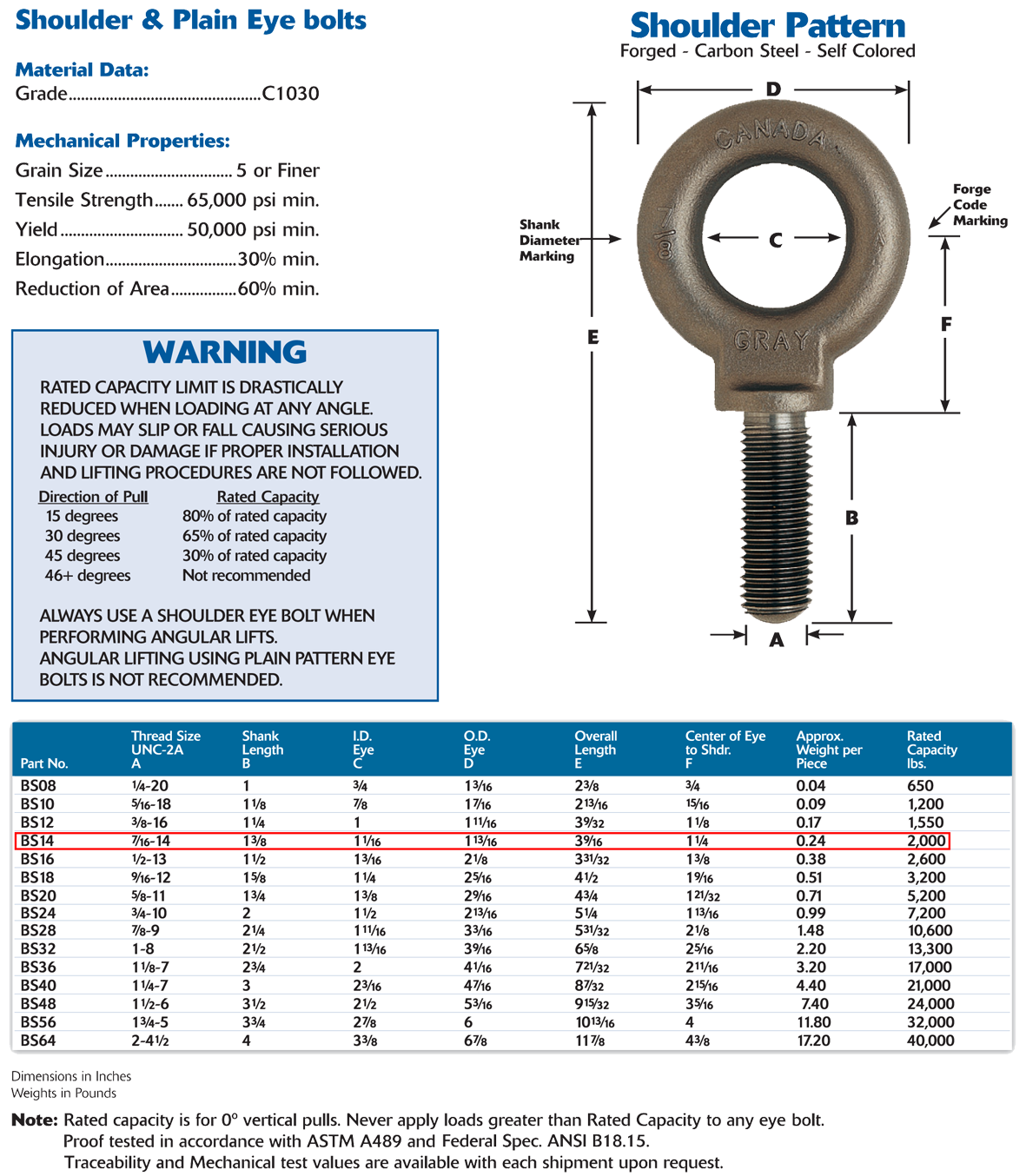

Specifications and dimensions: Click Here
Made in Taiwan
